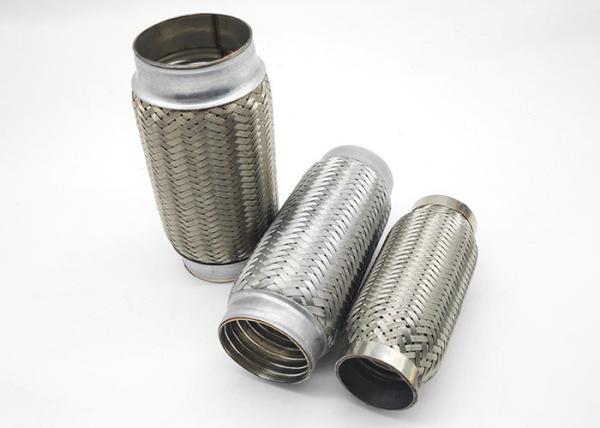

Truck Double Braided Flexible Exhaust Bellows Flexible Tail in Stainless Steel
♦ Product Description:
Stainless steel exhaust flexible pipes is a part of the engine exhaust system of the car. They're constructed with 1 or 2-ply bellows and together with a seamless, convoluted inner core—increasing flexibility in order to reduce vibrations and prevent exhaust leaks that allows your car to be more comfortable and enjoyable in use. Such flex pipes are provided in a variety of lengths, diameters, and many styles.
For example, the common one is a flex pipe with four layers. The outer and inner layers are made from the weaving stainless wire. Between these layers, there is a double layer bellow, also made of stainless steel. Standard Caps with connectors are installed on both sides of the exhaust flex pipe. They securely fasten all four layers and allow them to install this element using clamps or by the "pipe-to-pipe" welding method and accurately match the right size.
♦ Product Specifications:
| Part No. | innner dia. inch | inner diamater mm | Length inch | Length mm |
| YP13404 | 1-3/4" | 45 | 4" | 102 |
| YP13406 | 1-3/4" | 45 | 6" | 152 |
| YP13407 | 1-3/4" | 45 | 7" | 178 |
| YP13408 | 1-3/4" | 45 | 8" | 203 |
| YP13409 | 1-3/4" | 45 | 9" | 230 |
| YP13410 | 1-3/4" | 45 | 10" | 254 |
| YP13411 | 1-3/4" | 45 | 11" | 280 |
| YP13412 | 1-3/4" | 45 | 12" | 305 |
| YP20004 | 2" | 50.8 | 4" | 102 |
| YP20006 | 2" | 50.8 | 6" | 152 |
| YP20008 | 2" | 50.8 | 8" | 203 |
| YP20009 | 2" | 50.8 | 9" | 230 |
| YP20010 | 2" | 50.8 | 10" | 254 |
| YP20011 | 2" | 50.8 | 11" | 280 |
| YP20012 | 2" | 50.8 | 12" | 305 |
| YP21404 | 2-1/4" | 57.2 | 4" | 102 |
| YP21406 | 2-1/4" | 57.2 | 6" | 152 |
| YP21408 | 2-1/4" | 57.2 | 8" | 203 |
| YP21409 | 2-1/4" | 57.2 | 9" | 230 |
| YP21410 | 2-1/4" | 57.2 | 10" | 254 |
| YP21411 | 2-1/4" | 57.2 | 11" | 280 |
| YP21412 | 2-1/4" | 57.2 | 12" | 305 |
| YP21204 | 2-1/2" / 3" | 63.5 / 76.2 | 4" | 102 |
| YP21206 | 2-1/2" / 3" | 63.5 / 76.2 | 6" | 152 |
| YP21208 | 2-1/2" / 3" | 63.5 / 76.2 | 8" | 203 |
| YP21209 | 2-1/2" / 3" | 63.5 / 76.2 | 9" | 230 |
| YP21210 | 2-1/2" / 3" | 63.5 / 76.2 | 10" | 254 |
| YP21211 | 2-1/2" / 3" | 63.5 / 76.2 | 11" | 280 |
| YP21212 | 2-1/2" / 3" | 63.5 / 76.2 | 12" | 305 |
Drawings and Types:
♦ Warehouse and Packing:
♦ Advantages / Characteristics :
1.High flexibility with long life
2.For high temperature
3.Anti-corrosion
4.Absorb noise and decouple vibration
♦ About Us:
We make and supply many car accessories like exhaust muffler, exhaust bend pipe, corrugated flexible pipe,exhaust muffler rain cap, V band clamps, bolted U clamp,bottle joint clamp and other exhaust accessories.
Our customers cover Middle-East,Southeast Asia, Asia, USA,Canada, Europe, South America, and so on.
